NTN UELS306-102D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Collar Number
EL306-102
Basic Outer Ring
306
Static Load Rating
15000 N
Dynamic Load Rating
26700 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

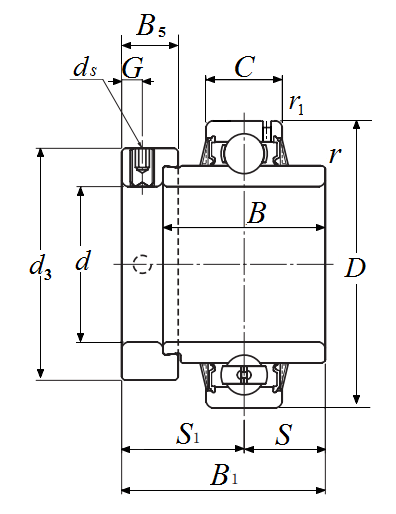

Dimensional Specifications
d
28.575 mm
D
72.000 mm
C
23.000 mm
B
36.500 mm
B1
50.000 mm
r
1.500 mm
ds
5/16-24 UNF
G
6.700 mm
d3
50.000 mm
B5
17.500 mm
S1
32.500 mm
S
17.500 mm
F
5.100 mm
r1
1.000 mm
