NTN UELS307-104D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Collar Number
EL307-104
Basic Outer Ring
307
Static Load Rating
19100 N
Dynamic Load Rating
33500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

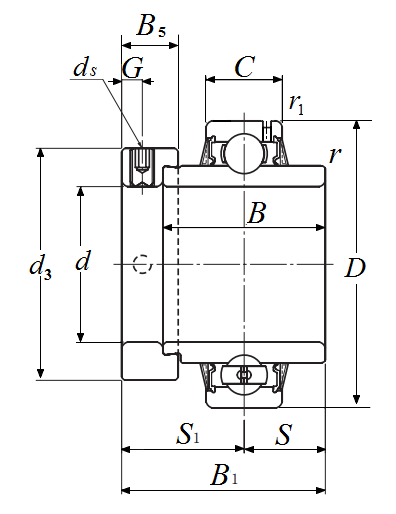

Dimensional Specifications
d
31.750 mm
D
80.000 mm
C
25.000 mm
B
38.100 mm
B1
51.600 mm
r
2.000 mm
ds
5/16-24 UNF
G
6.700 mm
d3
55.000 mm
B5
17.500 mm
S1
33.300 mm
S
18.300 mm
F
5.300 mm
r1
1.000 mm
