NTN UELS309D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricable
Collar Number
EL309
Basic Outer Ring
309
Static Load Rating
32000 N
Dynamic Load Rating
53000 N
Enclosure
Double Sealed
Weight
1.500 kg
Operating Temperature Range
-40 to 120 ºC

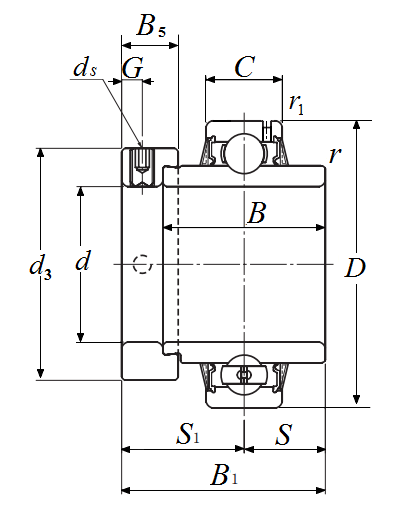

Dimensional Specifications
d
45.000 mm
D
100.000 mm
C
29.000 mm
B
42.900 mm
B1
58.700 mm
r
2.000 mm
ds
M10x1.25
G
8.000 mm
d3
70.000 mm
B5
20.600 mm
S1
38.900 mm
S
19.800 mm
F
5.800 mm
r1
1.000 mm
