NTN UELS310-115D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Collar Number
EL310-115
Basic Outer Ring
310
Static Load Rating
38500 N
Dynamic Load Rating
62000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

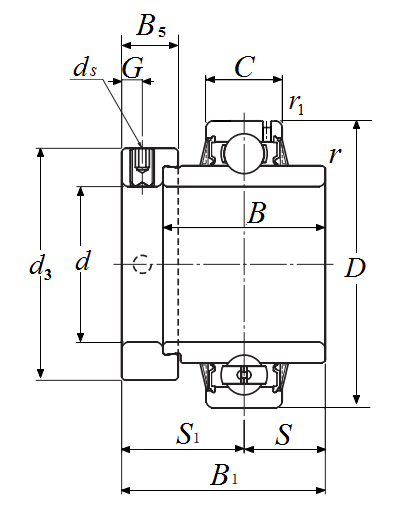

Dimensional Specifications
d
49.213 mm
D
110.000 mm
C
32.000 mm
B
49.200 mm
B1
66.600 mm
r
2.500 mm
ds
3/8-24 UNF
G
8.700 mm
d3
76.200 mm
B5
22.200 mm
S1
42.000 mm
S
24.600 mm
F
6.300 mm
r1
1.500 mm
