NTN UELS311D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricable
Collar Number
EL311
Basic Outer Ring
311
Static Load Rating
45000 N
Dynamic Load Rating
71500 N
Enclosure
Double Sealed
Weight
2.420 kg
Operating Temperature Range
-40 to 120 ºC

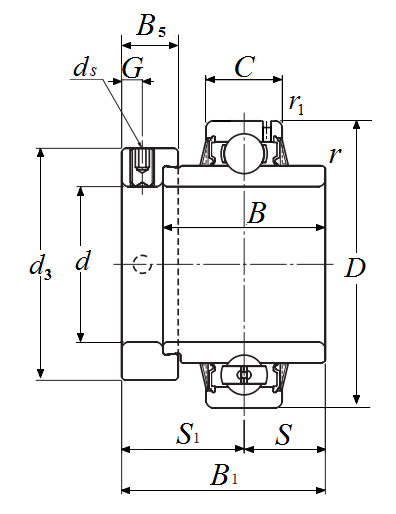

Dimensional Specifications
d
55.000 mm
D
120.000 mm
C
34.000 mm
B
55.600 mm
B1
73.000 mm
r
2.500 mm
ds
M10x1.25
G
8.700 mm
d3
83.000 mm
B5
22.200 mm
S1
45.200 mm
S
27.800 mm
F
6.500 mm
r1
1.500 mm
