NTN UELS312-207D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Collar Number
EL312-207
Basic Outer Ring
312
Static Load Rating
52000 N
Dynamic Load Rating
82000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

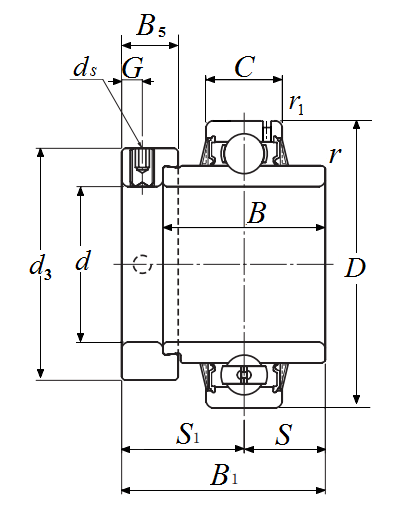

Dimensional Specifications
d
61.913 mm
D
130.000 mm
C
36.000 mm
B
61.900 mm
B1
79.400 mm
r
2.500 mm
ds
3/8-24 UNF
G
8.700 mm
d3
89.000 mm
B5
23.900 mm
S1
48.450 mm
S
30.950 mm
F
6.700 mm
r1
1.500 mm
