NTN UELS314-211D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Collar Number
EL314-211
Basic Outer Ring
314
Static Load Rating
68000 N
Dynamic Load Rating
104000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

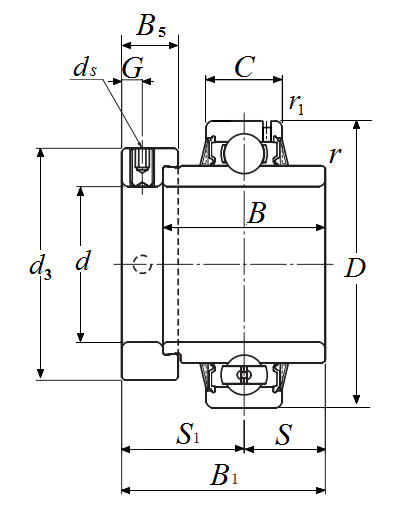

Dimensional Specifications
d
68.263 mm
D
150.000 mm
C
41.000 mm
B
68.300 mm
B1
92.100 mm
r
2.500 mm
ds
1/2-20 UNF
G
10.300 mm
d3
102.000 mm
B5
30.200 mm
S1
57.950 mm
S
34.150 mm
F
7.500 mm
r1
2.000 mm
