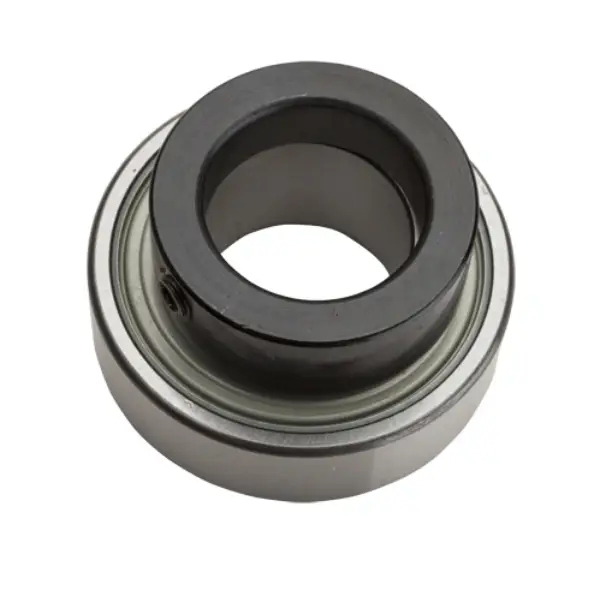

NTN UELS316-301D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Collar Number
EL316-301
Basic Outer Ring
316
Static Load Rating
86500 N
Dynamic Load Rating
123000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

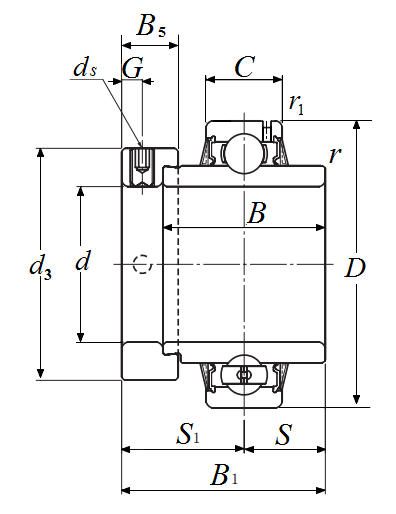

Dimensional Specifications
d
77.788 mm
D
170.000 mm
C
45.000 mm
B
81.000 mm
B1
106.400 mm
r
2.500 mm
ds
5/8-18 UNF
G
12.700 mm
d3
119.000 mm
B5
31.800 mm
S1
65.900 mm
S
40.500 mm
F
7.800 mm
r1
2.000 mm
