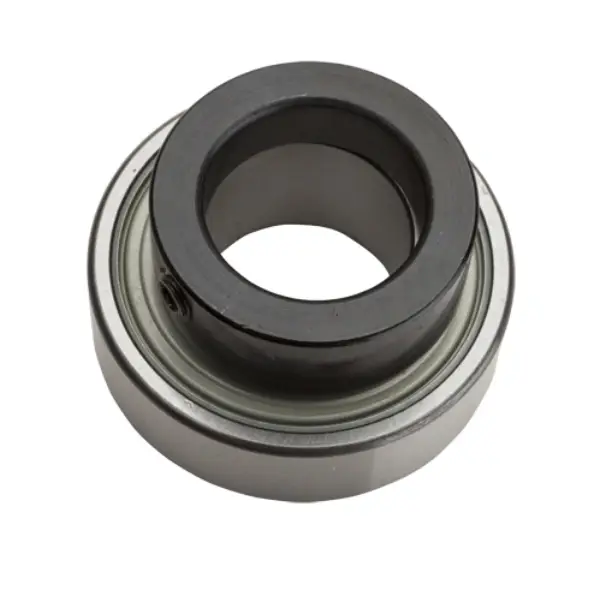

NTN UELS317-304D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Collar Number
EL317-304
Basic Outer Ring
317
Static Load Rating
97000 N
Dynamic Load Rating
133000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

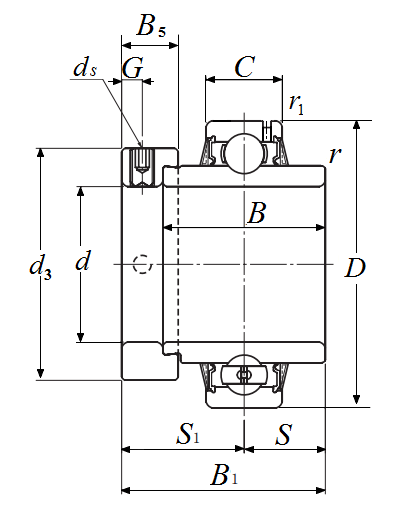

Dimensional Specifications
d
82.550 mm
D
180.000 mm
C
47.000 mm
B
84.100 mm
B1
109.500 mm
r
3.000 mm
ds
5/8-18 UNF
G
12.700 mm
d3
127.000 mm
B5
31.800 mm
S1
67.450 mm
S
42.050 mm
F
8.200 mm
r1
2.500 mm
