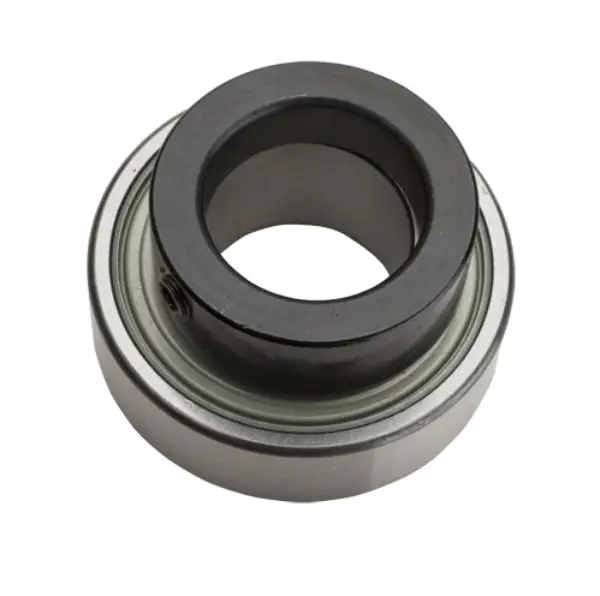

NTN UELS320D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricable
Collar Number
EL320
Basic Outer Ring
320
Static Load Rating
141000 N
Dynamic Load Rating
173000 N
Enclosure
Double Sealed
Weight
13.300 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
100.000 mm
D
215.000 mm
C
55.000 mm
B
100.000 mm
B1
128.600 mm
r
3.000 mm
ds
M20x1.5
G
14.300 mm
d3
146.000 mm
B5
36.500 mm
S1
78.600 mm
S
50.000 mm
F
9.000 mm
r1
2.500 mm
