NTN UK205D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
7850 N
Dynamic Load Rating
14000 N
Enclosure
Double Sealed
Weight
0.250 kg
Operating Temperature Range
-40 to 120 ºC

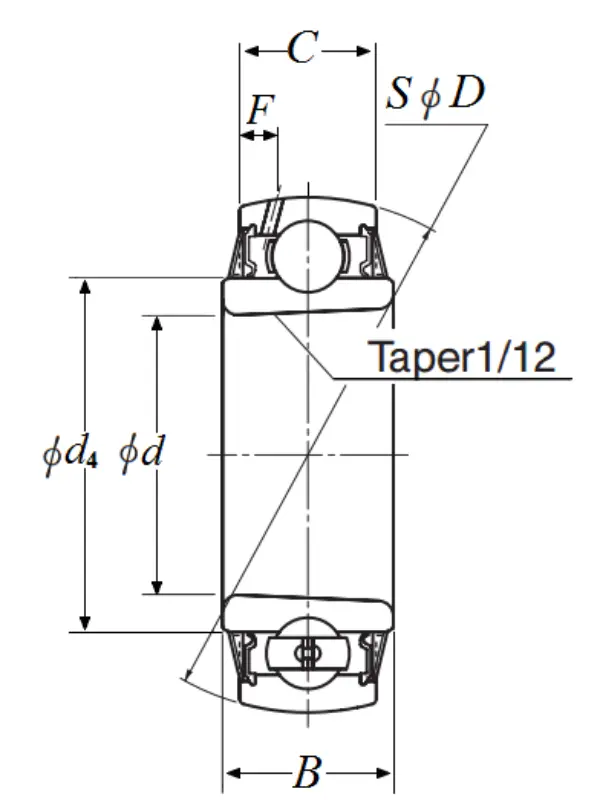

Dimensional Specifications
d
25.000 mm
D
52.000 mm
C
17.000 mm
B
23.000 mm
d4
33.900 mm
F
4.5 mm
Bore Size of the Adapter Type H
20.000 mm
Bore Size of the Adapter Type HE
19.050 mm
