NTN UK218
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Non-Relubricatable
Static Load Rating
71500 N
Dynamic Load Rating
96000 N
Enclosure
Double Sealed
Weight
4.740 kg
Operating Temperature Range
-40 to 120 ºC

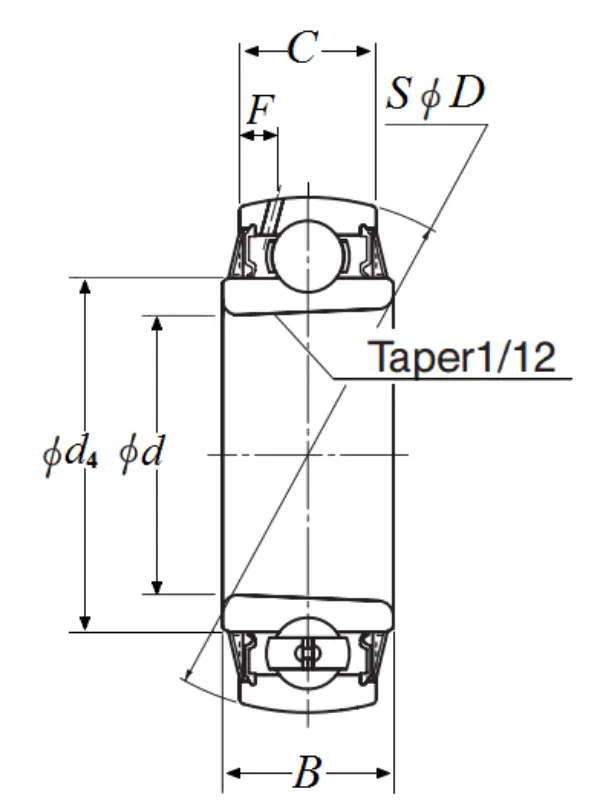

Dimensional Specifications
d
90.000 mm
D
160.000 mm
C
37.000 mm
B
47.000 mm
d4
111.600 mm
