NTN UK308D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
24000 N
Dynamic Load Rating
40500 N
Enclosure
Double Sealed
Weight
1.020 kg
Operating Temperature Range
-40 to 120 ºC

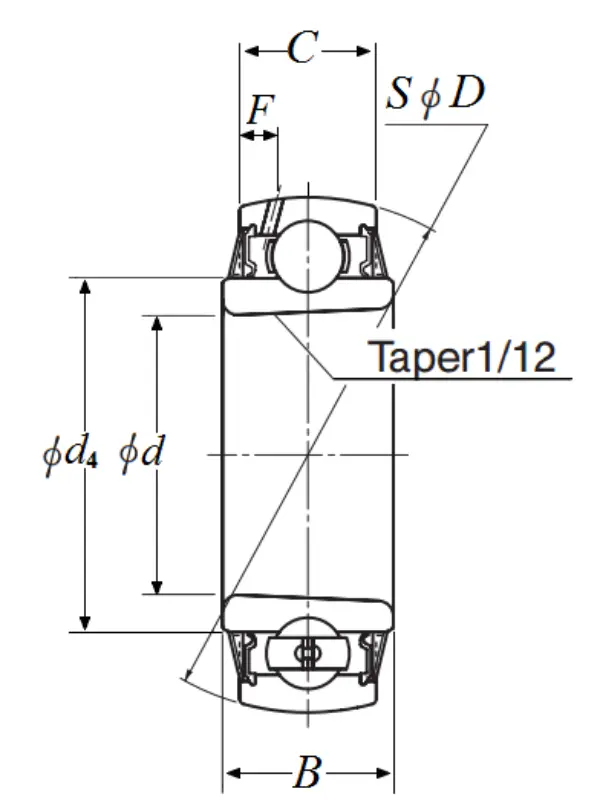

Dimensional Specifications
d
40.000 mm
D
90.000 mm
C
27.000 mm
B
34.000 mm
d4
56.000 mm
F
7.4 mm
Bore Size of the Adapter Type H
35.000 mm
Bore Size of the Adapter Type HE
31.750 mm
Bore Size of the Adapter Type HS
34.925 mm
