NTN UK309D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
32000 N
Dynamic Load Rating
53000 N
Enclosure
Double Sealed
Weight
1.380 kg
Operating Temperature Range
-40 to 120 ºC

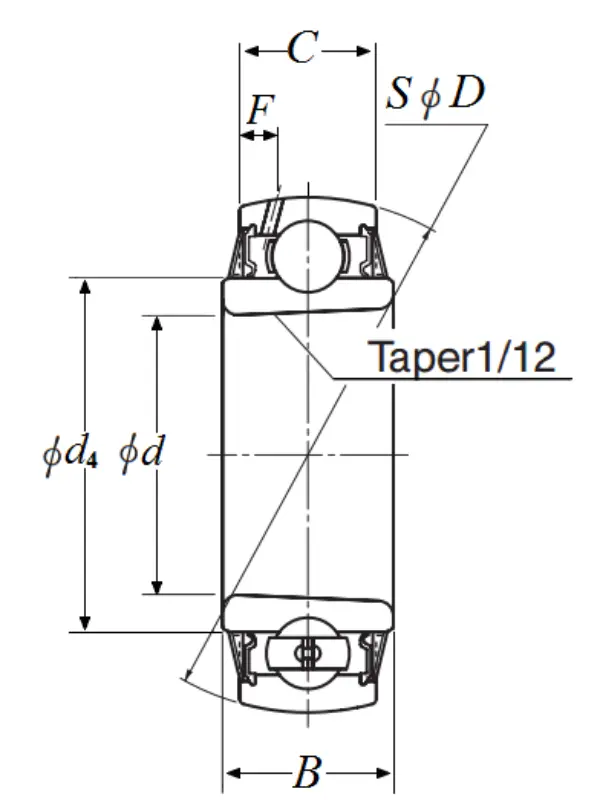

Dimensional Specifications
d
45.000 mm
D
100.000 mm
C
29.000 mm
B
37.000 mm
d4
63.500 mm
F
7.4 mm
Bore Size of the Adapter Type H
40.000 mm
Bore Size of the Adapter Type HE
38.100 mm
Bore Size of the Adapter Type HA
36.513 mm
Bore Size of the Adapter Type HS
41.275 mm
