NTN UK310D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
38500 N
Dynamic Load Rating
62000 N
Enclosure
Double Sealed
Weight
1.680 kg
Operating Temperature Range
-40 to 120 ºC

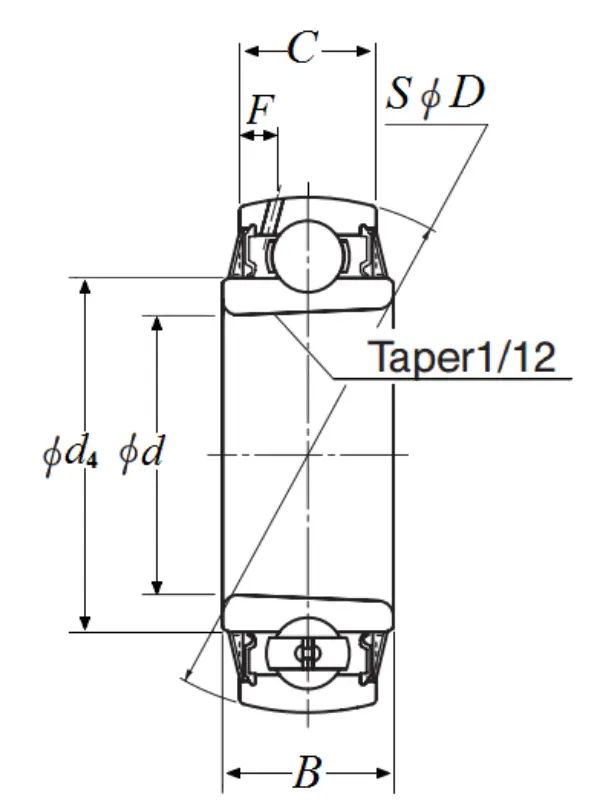

Dimensional Specifications
d
50.000 mm
D
110.000 mm
C
32.000 mm
B
41.000 mm
d4
70.600 mm
F
8.1 mm
Bore Size of the Adapter Type H
45.000 mm
Bore Size of the Adapter Type HE
42.863 mm
Bore Size of the Adapter Type HA
41.275 mm
Bore Size of the Adapter Type HS
44.450 mm
