NTN UK313HT2D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
60000 N
Dynamic Load Rating
92500 N
Enclosure
Double Sealed
Weight
3.080 kg
Operating Temperature Range
-40 to 200 ºC

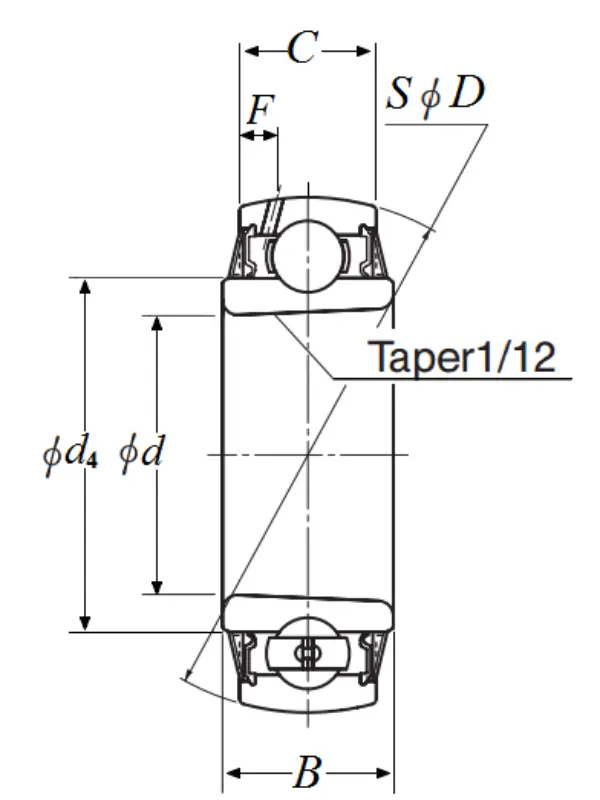

Dimensional Specifications
d
65.000 mm
D
140.000 mm
C
39.000 mm
B
49.000 mm
d4
88.200 mm
F
10.1 mm
Bore Size of the Adapter Type H
60.000 mm
Bore Size of the Adapter Type HE
57.150 mm
Bore Size of the Adapter Type HA
55.563 mm
Bore Size of the Adapter Type HS
60.325 mm
