NTN UK319D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
119000 N
Dynamic Load Rating
153000 N
Enclosure
Double Sealed
Weight
9.020 kg
Operating Temperature Range
-40 to 120 ºC

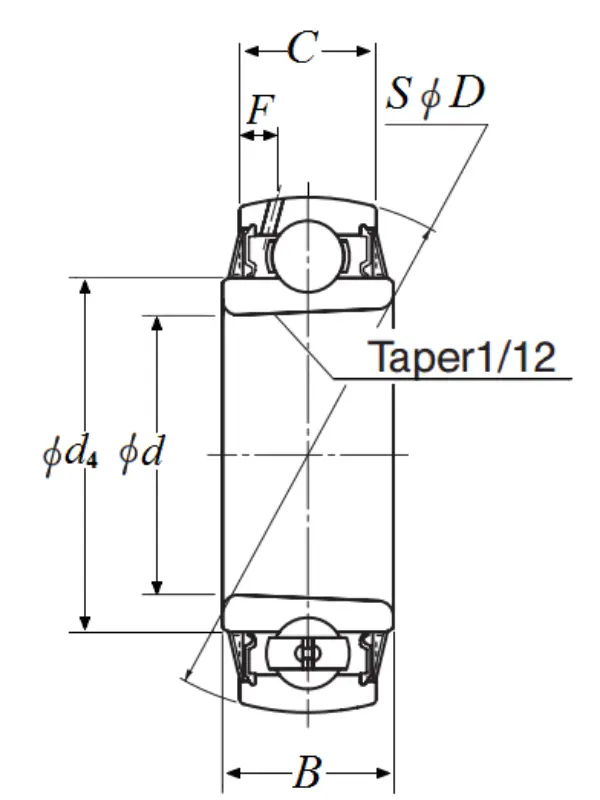

Dimensional Specifications
d
95.000 mm
D
200.000 mm
C
51.000 mm
B
67.000 mm
d4
127.500 mm
F
12.8 mm
Bore Size of the Adapter Type H
85.000 mm
Bore Size of the Adapter Type HE
82.550 mm
Bore Size of the Adapter Type HA
82.550 mm
