NTN UK326D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
214000 N
Dynamic Load Rating
229000 N
Enclosure
Double Sealed
Weight
23.300 kg
Operating Temperature Range
-40 to 120 ºC

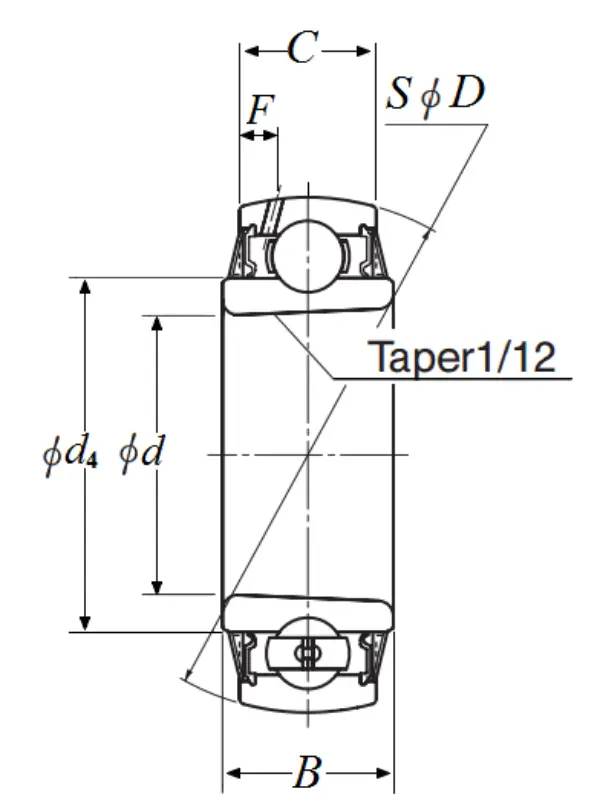

Dimensional Specifications
d
130.000 mm
D
280.000 mm
C
67.000 mm
B
90.000 mm
d4
178.300 mm
F
16.9 mm
Bore Size of the Adapter Type H
115.000 mm
