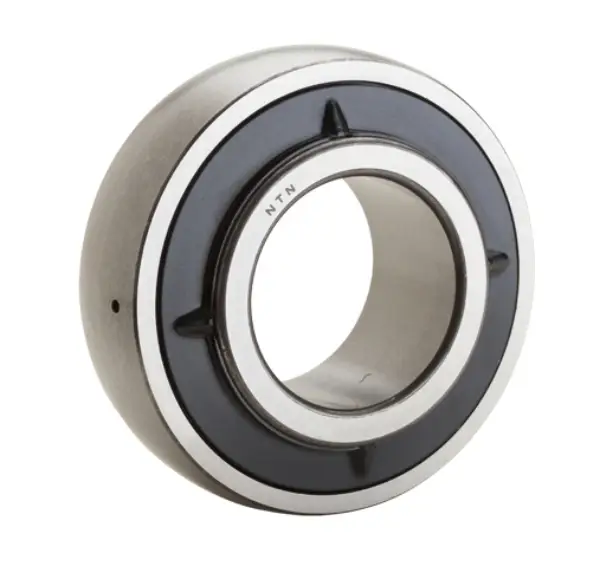

NTN UKX05
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Non-Relubricatable
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
0.380 kg
Operating Temperature Range
-40 to 120 ºC

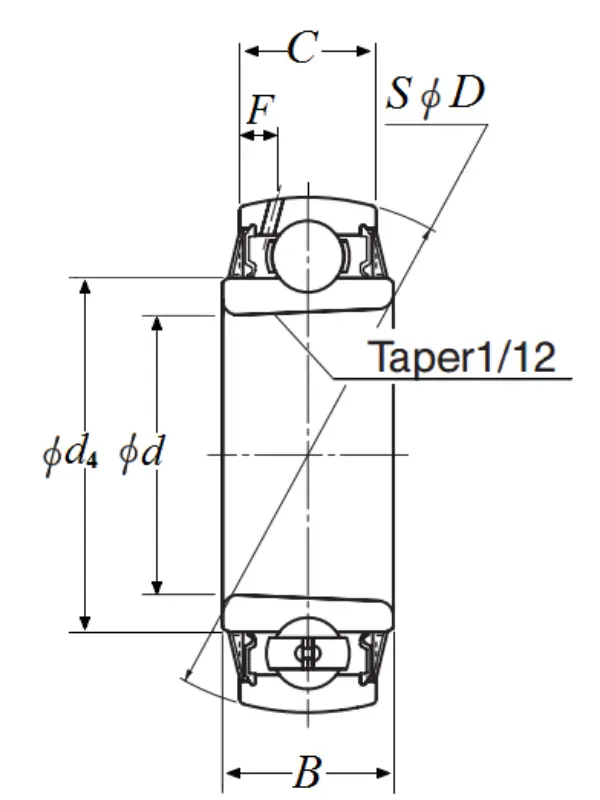

Dimensional Specifications
d
25.000 mm
D
62.000 mm
C
19.000 mm
B
26.000 mm
d4
40.800 mm
Bore Size of the Adapter Type H
20.000 mm
Bore Size of the Adapter Type HE
19.050 mm
