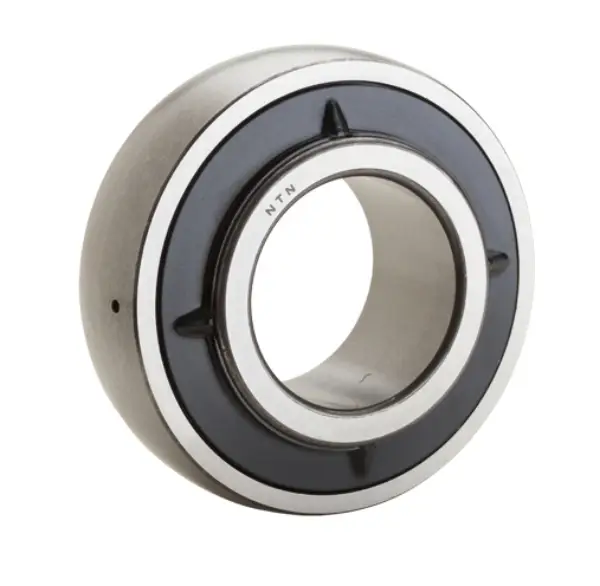

NTN UKX06D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
0.530 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
30.000 mm
D
72.000 mm
C
20.000 mm
B
29.000 mm
d4
46.800 mm
F
4.6 mm
Bore Size of the Adapter Type H
25.000 mm
Bore Size of the Adapter Type HE
25.400 mm
Bore Size of the Adapter Type HS
22.225 mm
