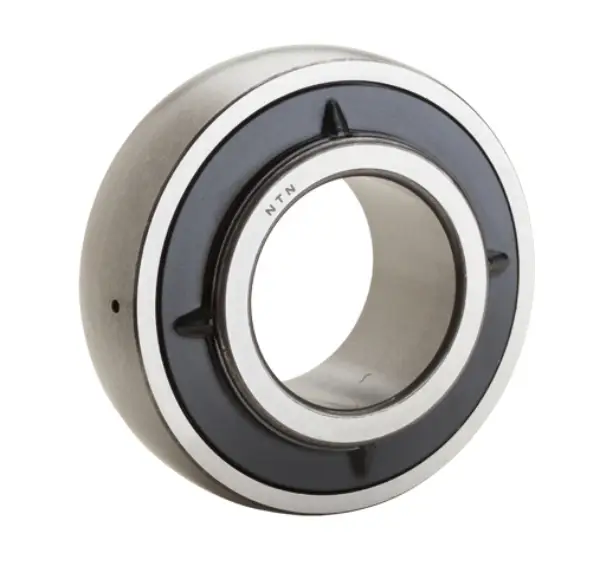

NTN UKX08
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Non-Relubricatable
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
0.850 kg
Operating Temperature Range
-40 to 120 ºC

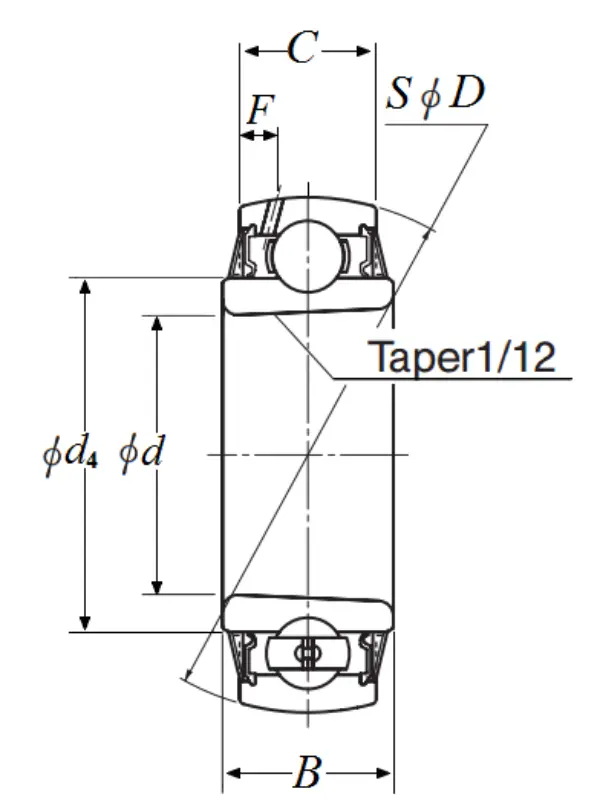

Dimensional Specifications
d
40.000 mm
D
85.000 mm
C
22.000 mm
B
31.000 mm
d4
57.500 mm
Bore Size of the Adapter Type H
35.000 mm
Bore Size of the Adapter Type HE
31.750 mm
Bore Size of the Adapter Type HS
34.925 mm
