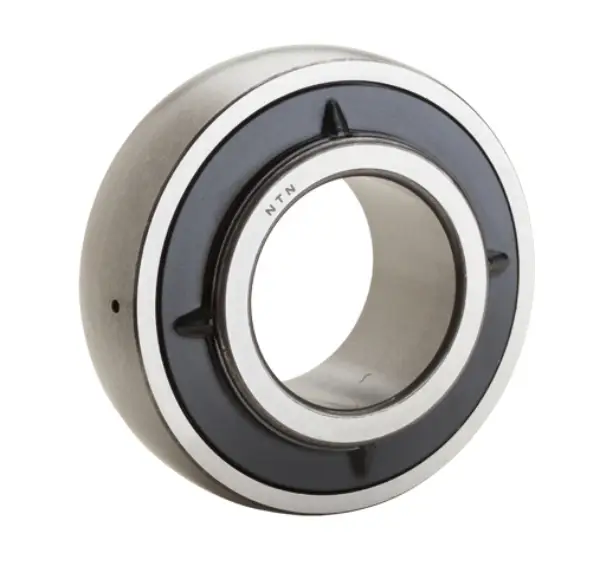

NTN UKX10
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Non-Relubricatable
Static Load Rating
29200 N
Dynamic Load Rating
43500 N
Enclosure
Double Sealed
Weight
1.290 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
50.000 mm
D
100.000 mm
C
25.000 mm
B
35.000 mm
d4
69.000 mm
Bore Size of the Adapter Type H
45.000 mm
Bore Size of the Adapter Type HE
44.450 mm
Bore Size of the Adapter Type HA
42.863 mm
Bore Size of the Adapter Type HS
41.275 mm
