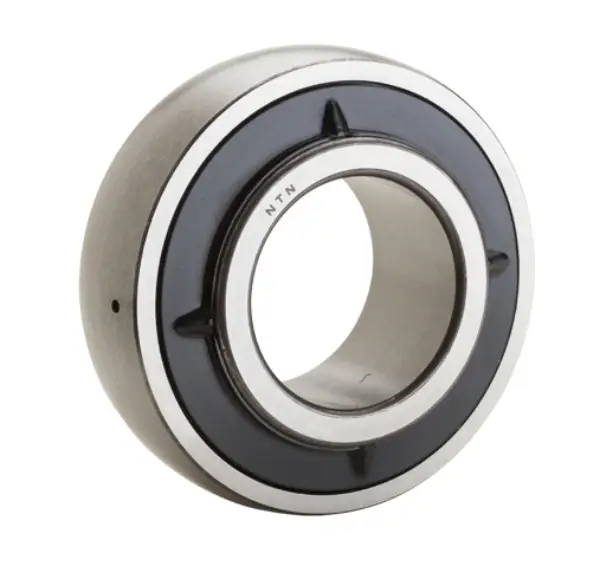

NTN UKX17D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
71500 N
Dynamic Load Rating
96000 N
Enclosure
Double Sealed
Weight
4.760 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
85.000 mm
D
160.000 mm
C
37.000 mm
B
47.000 mm
d4
111.600 mm
F
9.8 mm
Bore Size of the Adapter Type H
75.000 mm
Bore Size of the Adapter Type HE
76.200 mm
Bore Size of the Adapter Type HA
74.613 mm
