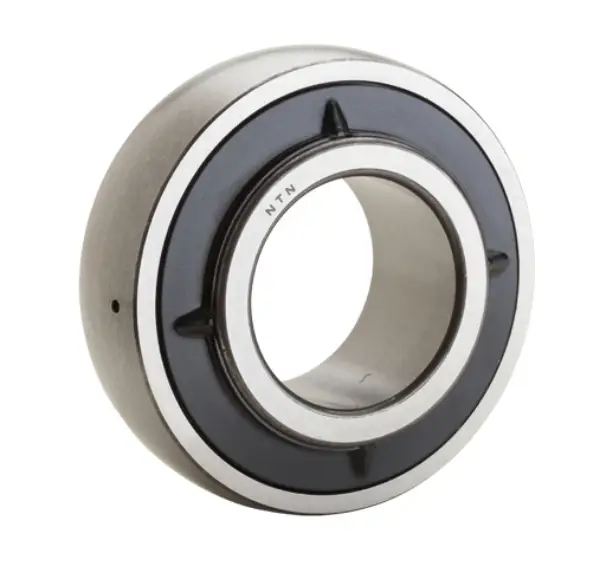

NTN UKX18D1
Adapter Type Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing, Adapter Type
Bore Type
Tapered
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Taper
1:12
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Intermediate Duty
Locking Device
Adapter
Lubrication
Relubricatable
Static Load Rating
82000 N
Dynamic Load Rating
109000 N
Enclosure
Double Sealed
Weight
5.170 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
90.000 mm
D
170.000 mm
C
39.000 mm
B
49.000 mm
d4
118.200 mm
F
10.5 mm
Bore Size of the Adapter Type H
80.000 mm
Bore Size of the Adapter Type HA
80.963 mm
