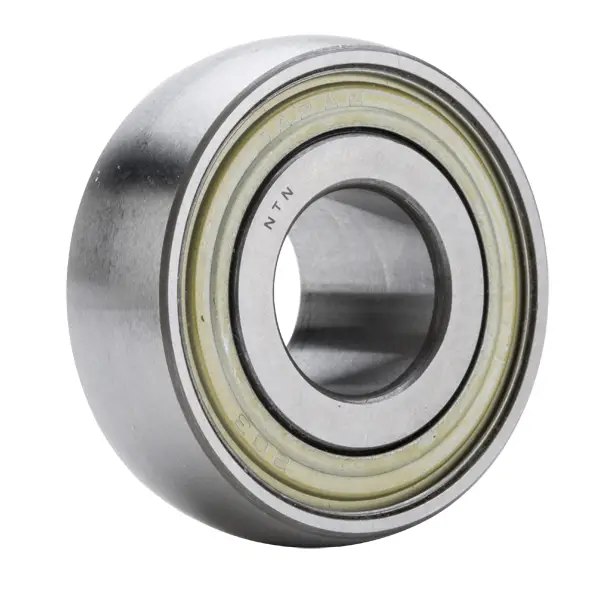

NTN UL204-012D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
6700 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
None
Lubrication
Relubricatable
Basic Outer Ring
204
Radial Internal Clearance
CN
Static Load Rating
6650 N
Dynamic Load Rating
12800 N
Enclosure
Double Sealed
Weight
0.204 kg
Operating Temperature Range
-40 to 120 ºC

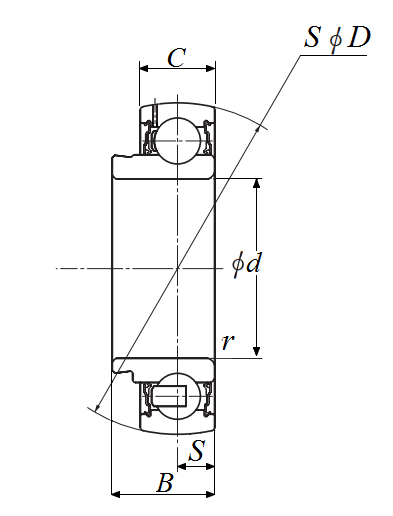

Dimensional Specifications
d
19.050 mm
D
47.000 mm
C
17.000 mm
B
34.200 mm
B1
43.700 mm
r
1.000 mm
S
17.1 mm
