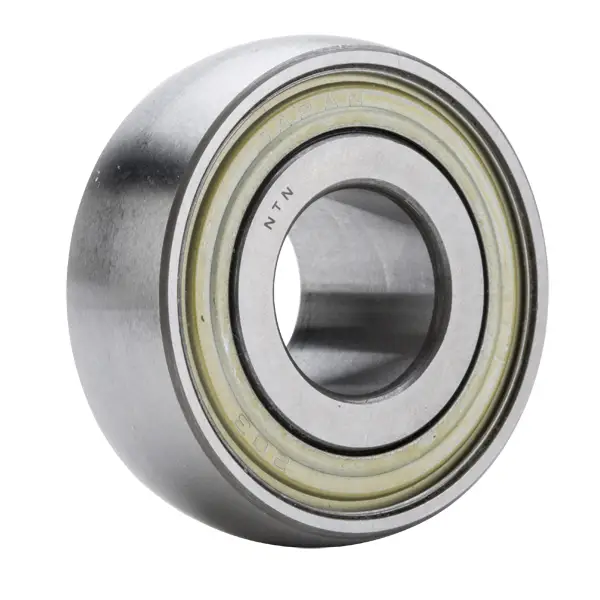

NTN UL207-107D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4200 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
None
Lubrication
Relubricatable
Basic Outer Ring
207
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
0.581 kg
Operating Temperature Range
-40 to 120 ºC

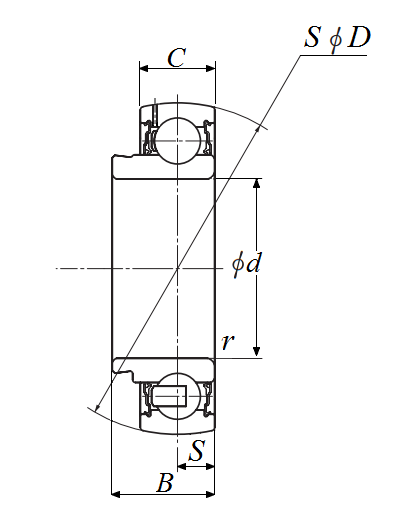

Dimensional Specifications
d
36.513 mm
D
72.000 mm
C
20.000 mm
B
37.600 mm
B1
51.100 mm
r
1.500 mm
S
18.8 mm
