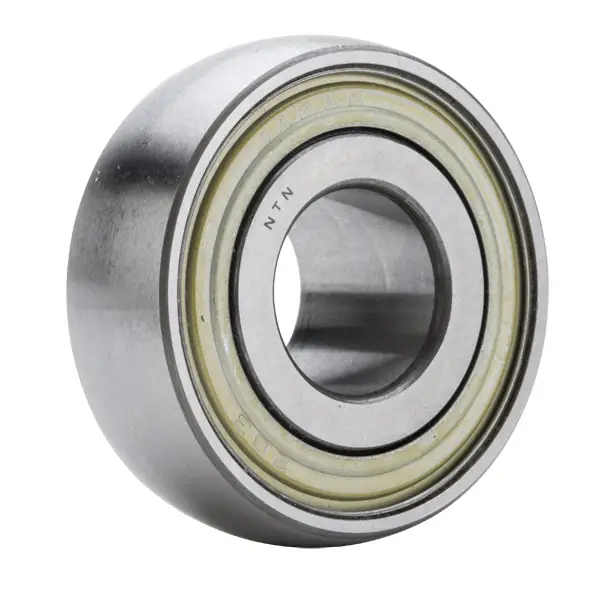

NTN UL209-112D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
None
Lubrication
Relubricatable
Basic Outer Ring
209
Radial Internal Clearance
CN
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
0.853 kg
Operating Temperature Range
-40 to 120 ºC

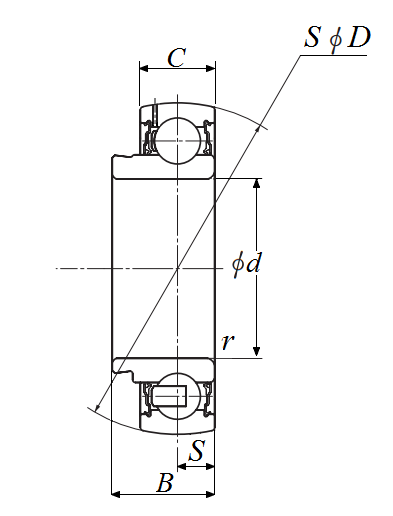

Dimensional Specifications
d
44.450 mm
D
85.000 mm
C
22.000 mm
B
42.800 mm
B1
56.300 mm
r
1.500 mm
S
21.4 mm
