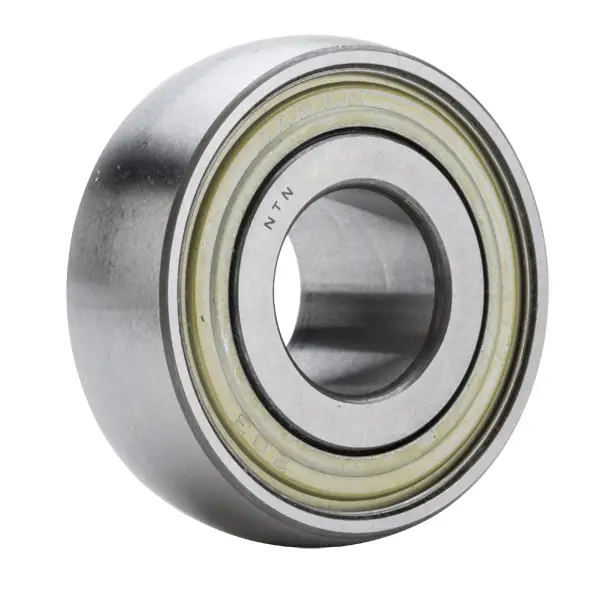

NTN UL212-204D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
2500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
None
Lubrication
Relubricatable
Basic Outer Ring
212
Radial Internal Clearance
CN
Static Load Rating
36000 N
Dynamic Load Rating
52500 N
Enclosure
Double Sealed
Weight
1.987 kg
Operating Temperature Range
-40 to 120 ºC

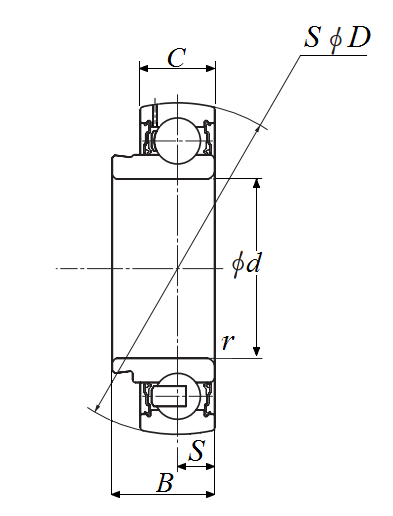

Dimensional Specifications
d
57.150 mm
D
110.000 mm
C
27.000 mm
B
61.900 mm
B1
77.800 mm
r
2.000 mm
S
31 mm
