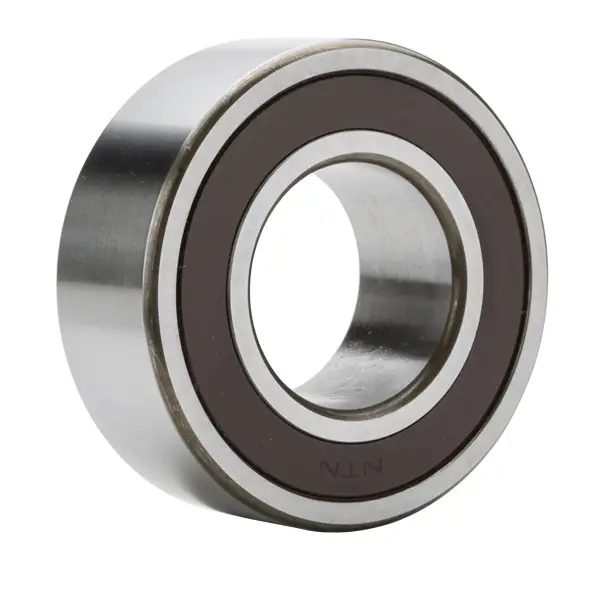

NTN W5205SLLD
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
8500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
14700 N
Dynamic Load Rating
21300 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

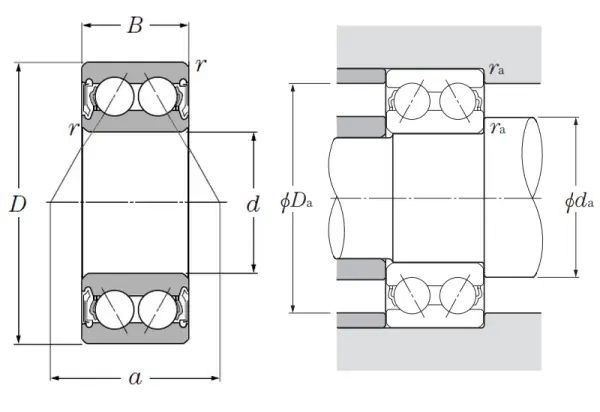

Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
23.812 mm
r
1.000 mm
Contact Angle
25 º
a
26.800 mm
da min
31.000 mm
Da max
46.000 mm
ras max
1.000 mm
