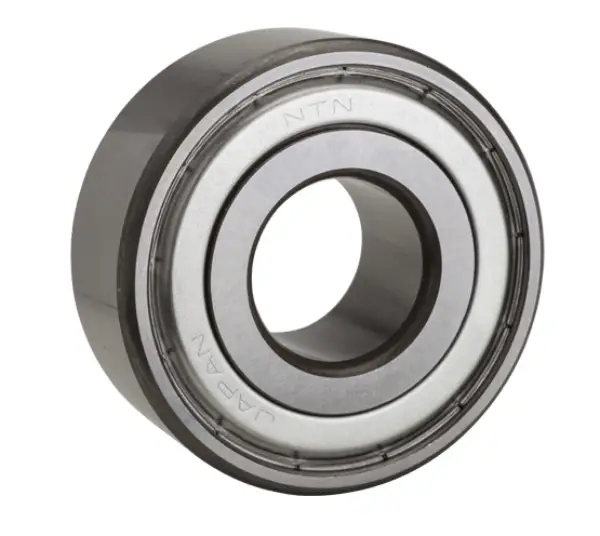

NTN W5205ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
8500 RPM
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
14700 N
Dynamic Load Rating
21300 N
Enclosure
Double Shielded
Weight
0.204 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
23.812 mm
r
1.000 mm
r1
1.000 mm
da min
31.000 mm
Da max
46.000 mm
ras max
1.000 mm
