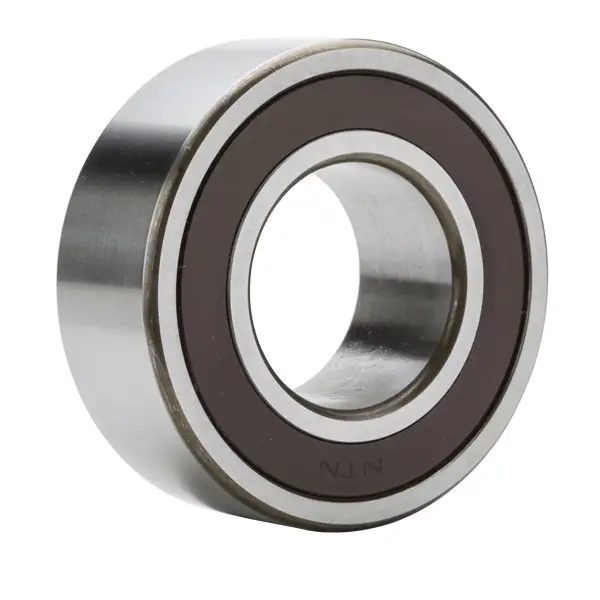

NTN W5207LLUC3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
6300 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
28700 N
Dynamic Load Rating
39000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

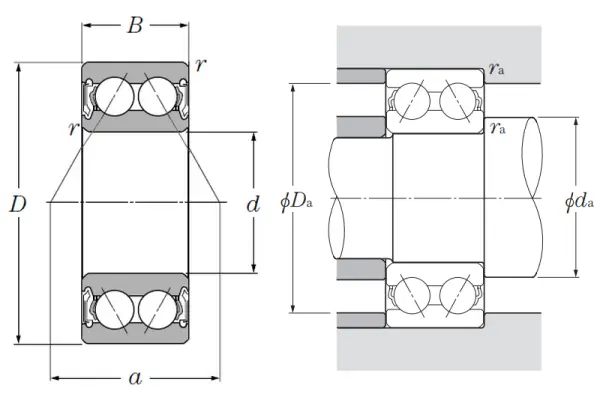

Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
30.162 mm
r
1.100 mm
Contact Angle
25 º
a
36.600 mm
da min
42.000 mm
Da max
65.000 mm
ras max
1.000 mm
