NTN W625Z
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
44000 RPM
Limiting Speed - Grease
37000 RPM
Precision
ISO Class 0
Configuration
One
Factor
14.0
Radial Internal Clearance
CN
Static Load Rating
680 N
Dynamic Load Rating
1940 N
Enclosure
Single Shielded
Operating Temperature Range
-40 to 120 ºC

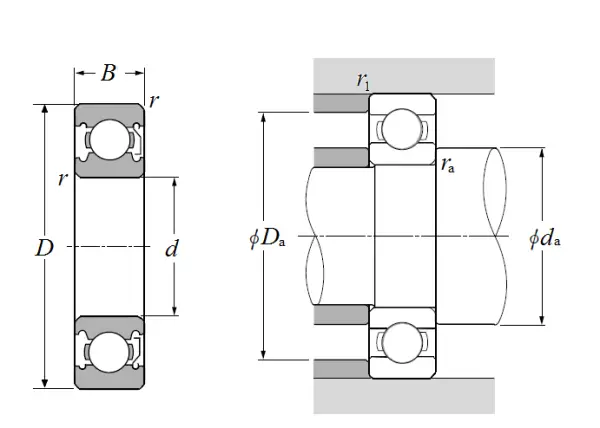

Dimensional Specifications
d
5.000 mm
D
16.000 mm
B
5.000 mm
r
0.300 mm
da min
7.000 mm
da max
7.600 mm
Da max
14.000 mm
ras max
0.300 mm
