NTN W67/2.5ZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
82000 RPM
Limiting Speed - Grease
70000 RPM
Precision
ISO Class 0
Configuration
One
Factor
4.4
Radial Internal Clearance
CN
Static Load Rating
59 N
Dynamic Load Rating
169 N
Enclosure
Single Shielded
Operating Temperature Range
-40 to 120 ºC

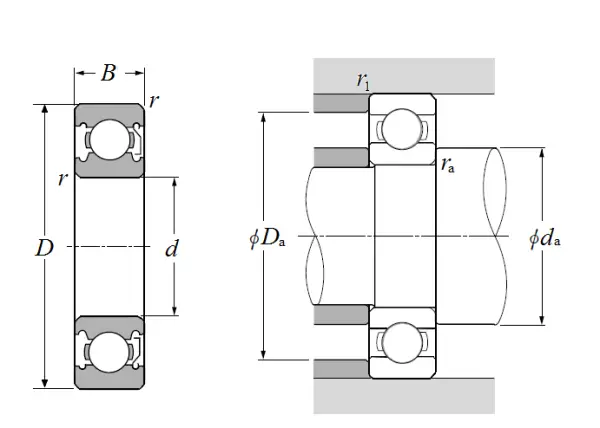

Dimensional Specifications
d
2.500 mm
D
5.000 mm
B
2.300 mm
r
0.080 mm
da min
3.100 mm
da max
3.300 mm
Da max
4.400 mm
ras max
0.080 mm
