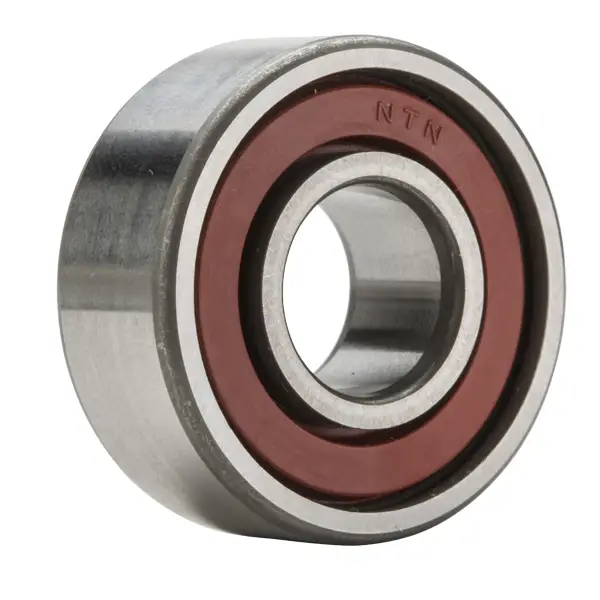

NTN WC87026
Single Row Radial Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
8900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Radial Internal Clearance
CN
Precision
ISO Class 0
Static Load Rating
7850 N
Dynamic Load Rating
14000 N
Enclosure
Shielded & Sealed
Operating Temperature Range
-40 to 120 ºC

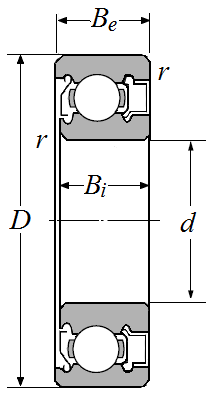

Dimensional Specifications
d
26.000 mm
D
52.000 mm
Be
15.875 mm
Bi
15.240 mm
Total Width
15.875 mm
r
1.000 mm
