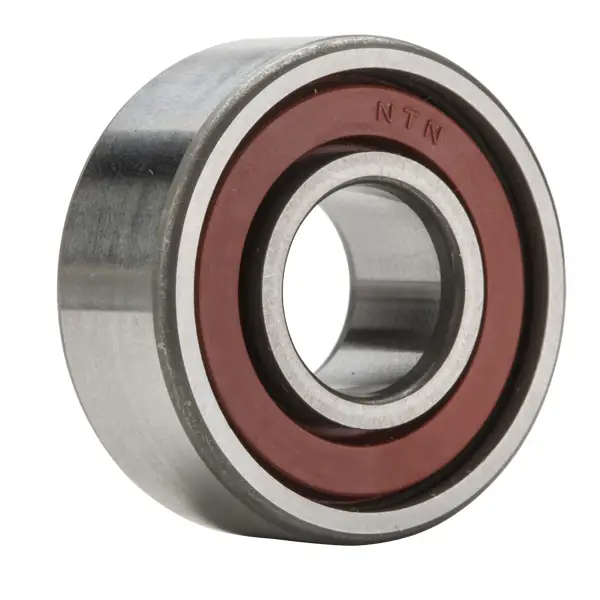

NTN WC87509
Single Row Radial Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
5200 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Radial Internal Clearance
CN
Precision
ISO Class 0
Static Load Rating
20500 N
Dynamic Load Rating
32500 N
Enclosure
Shielded & Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
45.000 mm
D
85.000 mm
Be
24.000 mm
Bi
24.000 mm
Total Width
24.000 mm
r
1.000 mm
