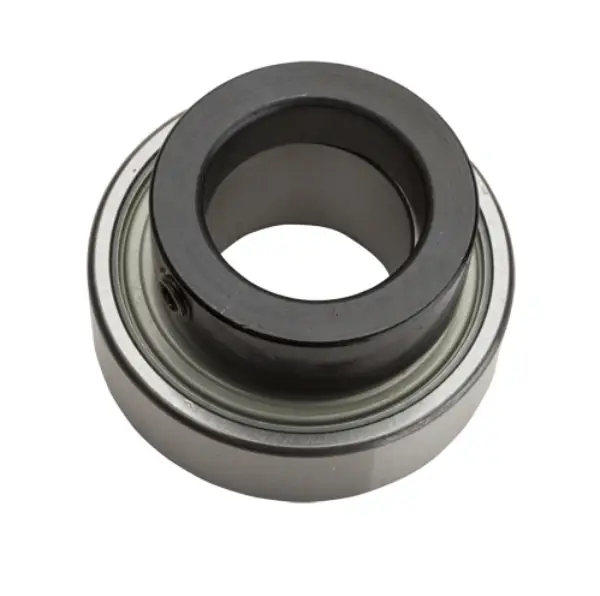

NTN WPC102GPC
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Radial Internal Clearance
C3
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

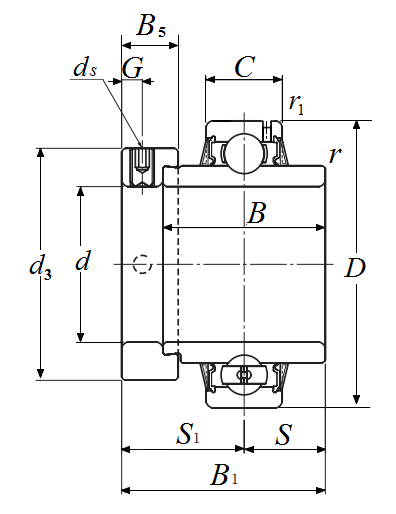

Dimensional Specifications
d
49.213 mm
D
62.000 mm
C
16.000 mm
B
36.513 mm
S
18.255 mm
