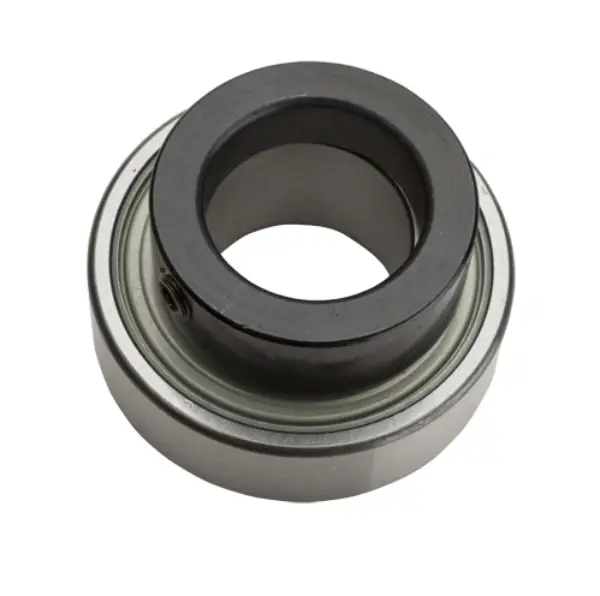

NTN WPC107GPC
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
600 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
0.560 kg
Operating Temperature Range
-40 to 120 ºC

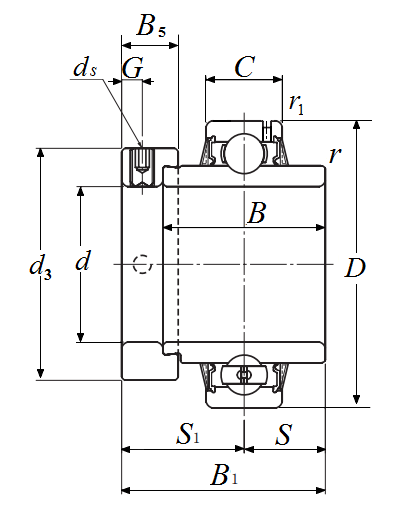

Dimensional Specifications
d
36.513 mm
D
72.000 mm
C
17.000 mm
B
37.694 mm
B1
51.294 mm
r
1.000 mm
ds
3/8-16 UNC
G
6.700 mm
d3
53.975 mm
B5
17.463 mm
S1
32.444 mm
S
18.850 mm
r1
1.000 mm
Specifications
Radial Dynamic Load Rating
25700 N
Lubrication
No
Radial Static Load Rating
15300 N
