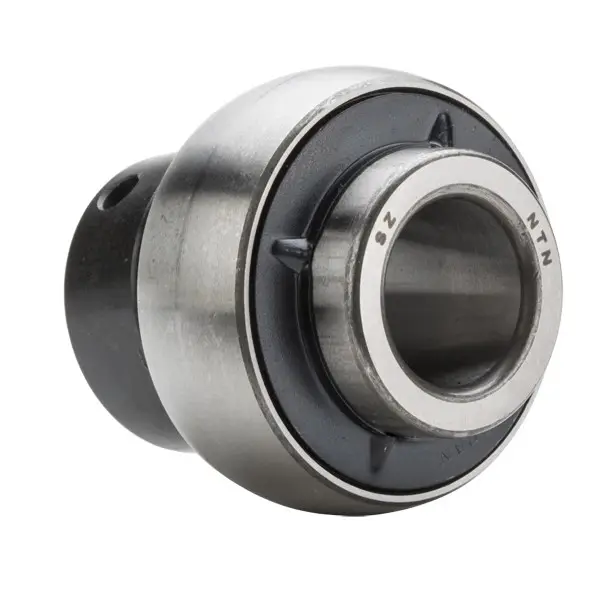

NTN WPS111GRC
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
2285 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Locking Device
Eccentric Locking Collar
Lubrication
Outer Ring
Radial Internal Clearance
CN
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
4.380 kg
Operating Temperature Range
-40 to 120 ºC

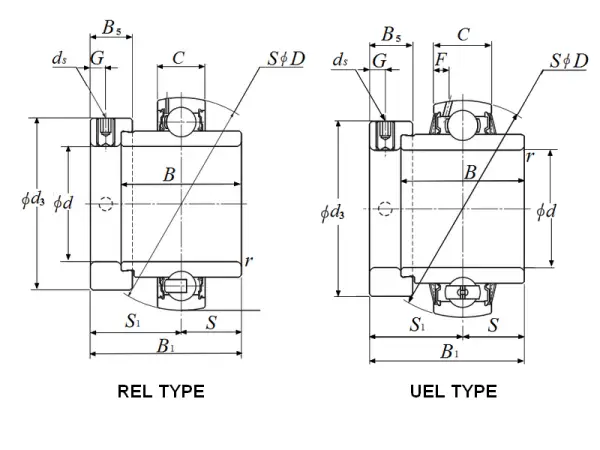

Dimensional Specifications
d
42.863 mm
D
85.000 mm
C
22.000 mm
B
42.900 mm
B1
56.300 mm
r
1.000 mm
ds
3/8-16 UNC
G
6.700 mm
d3
62.18 mm
B5
18.2 mm
S1
34.85 mm
S
21.45 mm
Specifications
Radial Dynamic Load Rating
32500 N
Lubrication
Outer Ring
Radial Static Load Rating
20400 N
