NTN WPS200GP
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
2900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Locking Device
None
Lubrication
Non-Relubricatable
Basic Outer Ring
211
Radial Internal Clearance
C3
Static Load Rating
29200 N
Dynamic Load Rating
43500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

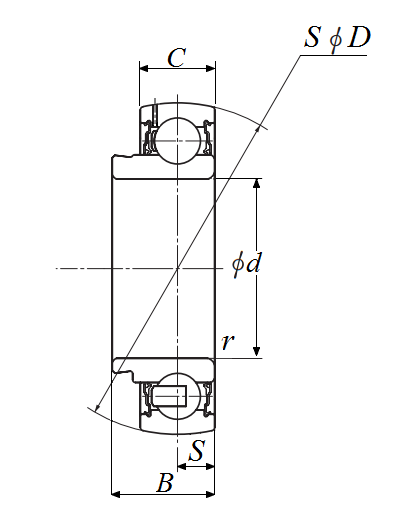

Dimensional Specifications
d
50.800 mm
D
100.000 mm
C
24.000 mm
B
55.500 mm
B1
71.400 mm
r
2.000 mm
S
27.800 mm
