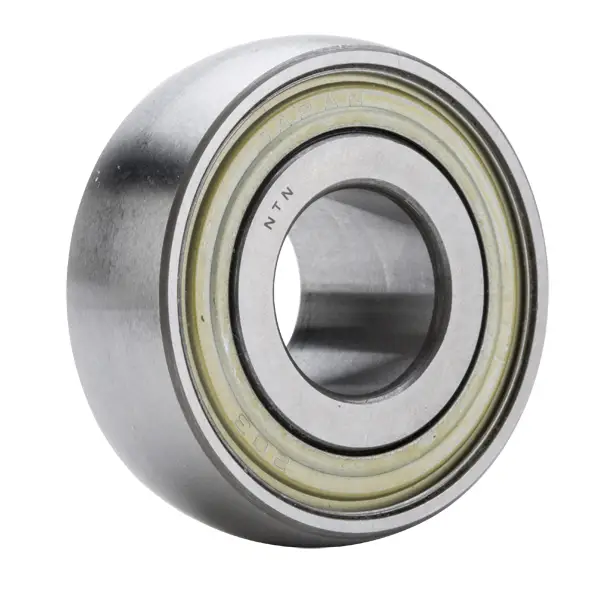

NTN WPS30GP
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Locking Device
None
Lubrication
Non-Relubricatable
Radial Internal Clearance
CN
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

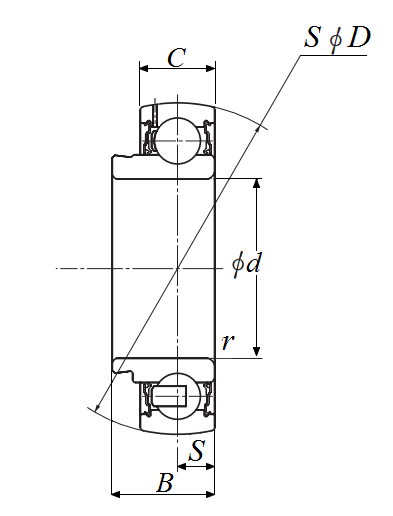

Dimensional Specifications
d
30.000 mm
D
62.000 mm
C
18.000 mm
B
36.500 mm
B1
48.400 mm
r
1.000 mm
S
18.25 mm
