NTN WUB67221V
Inner Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
505000 N
Dynamic Load Rating
375000 N
Enclosure
Open
Weight
4.200 kg
Operating Temperature Range
-40 to 120 ºC

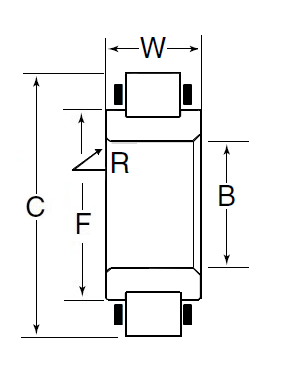

Dimensional Specifications
B
105.000 mm
C
172.778 mm
W
43.000 mm
