NTN ZUC204-12
Set Screw Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Zinc Plated Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Performance
Standard Duty
Locking Device
Set Screw
Lubrication
Relubricatable
Basic Outer Ring
204
Enclosure
Double Sealed
Weight
0.170 kg
Operating Temperature Range
-40 to 120 ºC

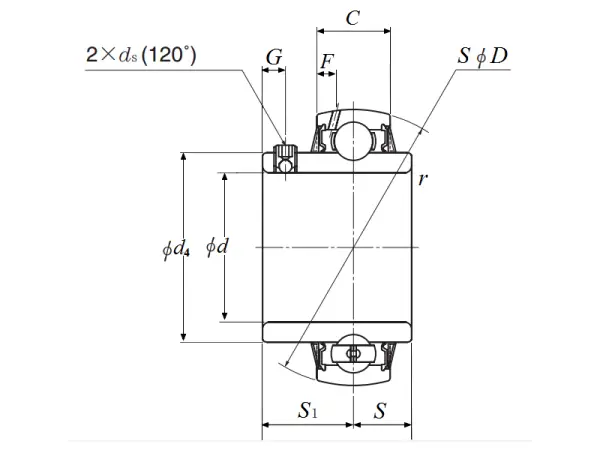

Dimensional Specifications
d
19.050 mm
D
47.000 mm
C
16.000 mm
B
31.000 mm
r
0.600 mm
ds
M6x1
G
4.7 mm
S1
18.3 mm
S
12.7 mm
