NTN ZUC208-24
Set Screw Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Zinc Plated Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Performance
Standard Duty
Locking Device
Set Screw
Lubrication
Relubricatable
Basic Outer Ring
208
Enclosure
Double Sealed
Weight
0.680 kg
Operating Temperature Range
-40 to 120 ºC

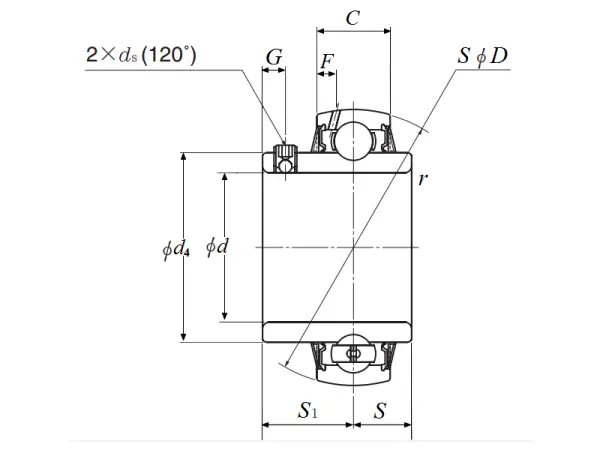

Dimensional Specifications
d
38.100 mm
D
80.000 mm
C
21.000 mm
B
49.200 mm
r
1.100 mm
ds
M8x1
G
8.000 mm
S1
30.2 mm
S
19 mm
