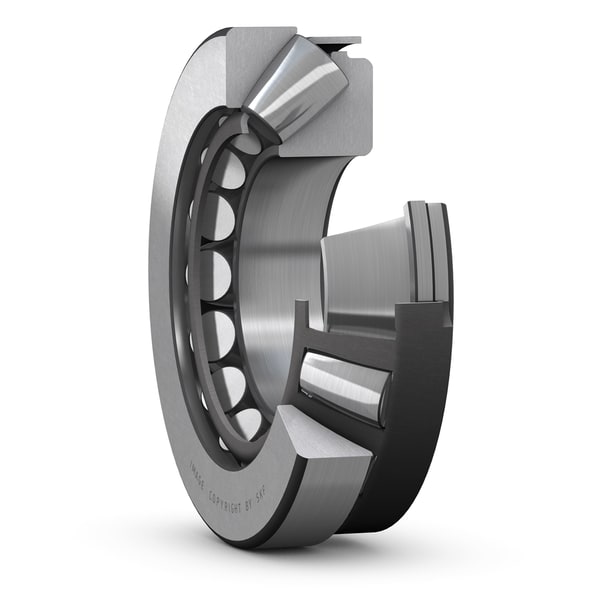

SKF 29230 E
Spherical roller thrust bearing with stamped steel cage
Dimensions
SKF 29230 E Spherical Roller Thrust Bearing Overview
The SKF 29230 E is part of the SKF Spherical roller thrust bearings product series. It is supplied with a stamped steel cage and is listed within the roller bearings category path for spherical roller thrust bearings.
What type of bearing is the 29230 E?
The 29230 E is a spherical roller thrust bearing branded by SKF and fitted with a stamped steel cage, based on the supplied product information.
29230 E Dimension and Mass Specifications
The supplied dimensional data for the SKF 29230 E includes the following values:
- Bore diameter (d): 150.0 mm
- Outside diameter (D): 215.0 mm
- Height (H): 39.0 mm
- Outside diameter of shaft washer end side face (d1): 200.0 mm
- Shoulder diameter outer ring (D1): 176.0 mm
- Width shaft washer (B): 24.0 mm
- Height shaft washer plus cage (B1): 34.3 mm
- Height housing washer (C): 20.5 mm
- Distance to pressure point (s): 82.0 mm
- Chamfer dimension shaft washer (r1,2): 1.5 mm
- Mass: 4.29 kg
What are the bearing's basic boundary dimensions?
The SKF 29230 E has a 150.0 mm bore diameter, a 215.0 mm outside diameter, and a 39.0 mm height, according to the supplied data.
Additional 29230 E Product Data
The product record also includes the following performance-related values:
- Listed load value: 408.0 kN
- Listed speed value: 2800.0 r/min
These values are presented only as supplied product data; the data does not identify a specific load-rating type or operating condition beyond the listed numerical entries.
What load and speed values are shown in the product record?
The supplied record lists 408.0 kN and 2800.0 r/min for the SKF 29230 E. No further qualification for these values is provided in the source data.
