SKF 29256

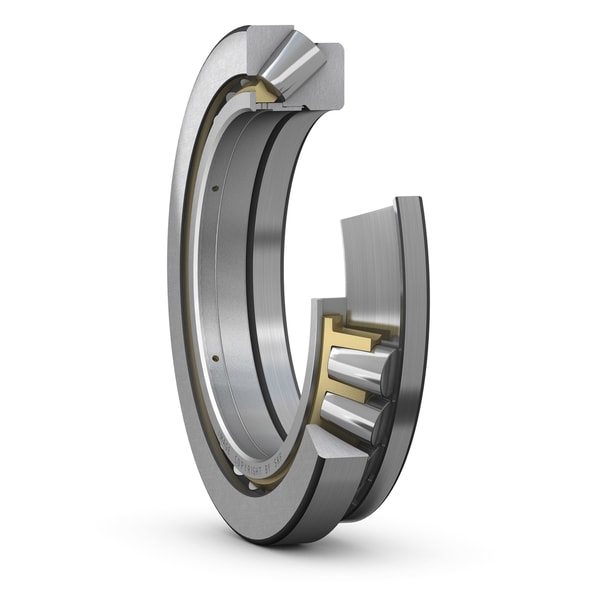

Spherical roller thrust bearing with machined metal cage
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
280.0 mm
Bore diameter
D
380.0 mm
Outside diameter
H
60.0 mm
Height
d1
370.0 mm
Outside diameter of shaft washer end side face
D1
323.0 mm
Shoulder diameter outer ring
B
19.0 mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a machined cage)
B1
57.0 mm
Height shaft washer + cage
C
30.5 mm
Height housing washer
s
150.0 mm
Distance from shaft washer end side face to pressure point
r1,2
2.1 mm
Chamfer dimension shaft washer
mass
19.2 kg
Product net weight
The SKF 29256 Is a Spherical Roller Thrust Bearing
The SKF 29256 belongs to the SKF Spherical roller thrust bearings product series and is described with a machined metal cage.
What bearing type and model is this product?
This is the 29256 model, an SKF spherical roller thrust bearing listed within the roller bearings category path.
The 29256 Has Documented Dimension and Mass Data
- Bore diameter d: 280.0 mm
- Outside diameter D: 380.0 mm
- Height H: 60.0 mm
- Mass: 19.2 kg
What additional dimensions are supplied for the bearing?
The product data lists d1 as 370.0 mm, D1 as 323.0 mm, B as 19.0 mm, B1 as 57.0 mm, C as 30.5 mm, s as 150.0 mm, and r1,2 as 2.1 mm.
Additional Product Values Are Provided for Reference
The supplied data also includes the values 863.0 kN and 1700.0 r/min, along with the bearing series, brand, and dimensional details.
What should be checked before selecting this bearing?
Review the listed dimensions, cage description, and available product values against the intended equipment requirements. Any load rating or speed interpretation should be based only on the supplied data or verified technical documentation.
