SKF 29326 E

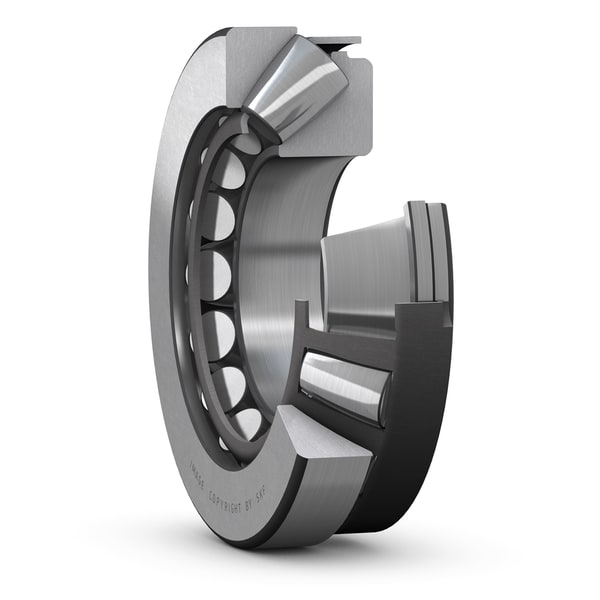

Spherical roller thrust bearing with stamped steel cage
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
225.0 mm
Outside diameter
H
58.0 mm
Height
d1
203.0 mm
Outside diameter of shaft washer end side face
D1
166.0 mm
Shoulder diameter outer ring
B
36.7 mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage)
B1
50.6 mm
Height shaft washer + cage
C
30.1 mm
Height housing washer
s
75.6 mm
Distance from shaft washer end side face to pressure point
r1,2
2.1 mm
Chamfer dimension shaft washer
mass
8.79 kg
Product net weight
