SKF 29328 E

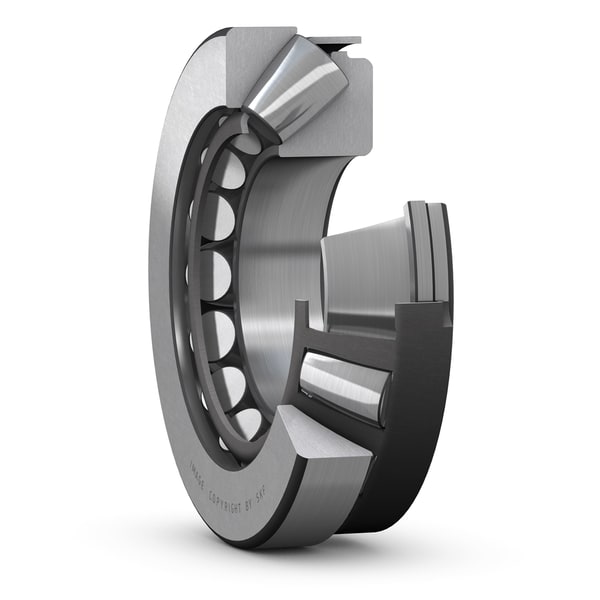

Spherical roller thrust bearing with stamped steel cage
Dimensions
29328 E Spherical Roller Thrust Bearing Overview
The 29328 E is an SKF spherical roller thrust bearing supplied with a stamped steel cage. It belongs to the SKF spherical roller thrust bearing series and is listed within the roller bearing category path.
What bearing type and model is this product?
This product is the SKF 29328 E, part of the Spherical roller thrust bearings series. The supplied data identifies its design as a spherical roller thrust bearing with stamped steel cage.
29328 E Dimensions and Physical Data
The bearing has specified principal dimensions of 140.0 mm bore diameter, 240.0 mm outside diameter, and 60.0 mm height. Additional supplied dimensions include:
- d1: 216.0 mm
- D1: 177.0 mm
- B: 38.5 mm
- B1: 54.0 mm
- C: 30.0 mm
- s: 82.0 mm
- r1,2: 2.1 mm
- Mass: 10.4 kg
What are the stated bore, outside diameter, and height?
The 29328 E has a bore diameter of 140.0 mm, an outside diameter of 240.0 mm, and a bearing height of 60.0 mm. The stated mass is 10.4 kg.
29328 E Supplied Performance Values
The product data includes a listed value of 980.0 kN and a speed-related value of 2600.0 r/min. Because the source fields do not name these values, they are presented only as supplied numerical specifications without assigning an additional rating definition.
- Listed force value: 980.0 kN
- Listed rotational speed value: 2600.0 r/min
- Brand: SKF
- Series: Spherical roller thrust bearings
What numerical performance information is provided?
The supplied data lists 980.0 kN and 2600.0 r/min for the 29328 E. No further designation for these values is provided, so they should be verified against the complete manufacturer documentation before selection.
