SKF 29340 E

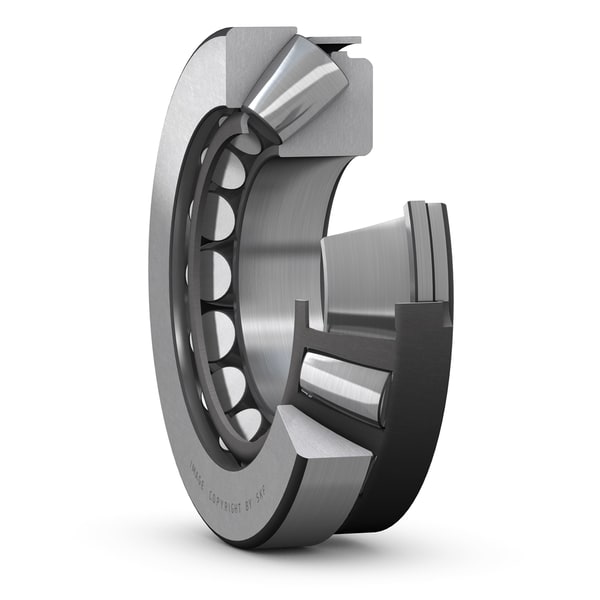

Spherical roller thrust bearing with stamped steel cage
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
200.0 mm
Bore diameter
D
340.0 mm
Outside diameter
H
85.0 mm
Height
d1
304.0 mm
Outside diameter of shaft washer end side face
D1
257.0 mm
Shoulder diameter outer ring
B
53.5 mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage)
B1
76.7 mm
Height shaft washer + cage
C
40.0 mm
Height housing washer
s
116.0 mm
Distance from shaft washer end side face to pressure point
r1,2
4.0 mm
Chamfer dimension shaft washer
mass
29.5 kg
Product net weight
