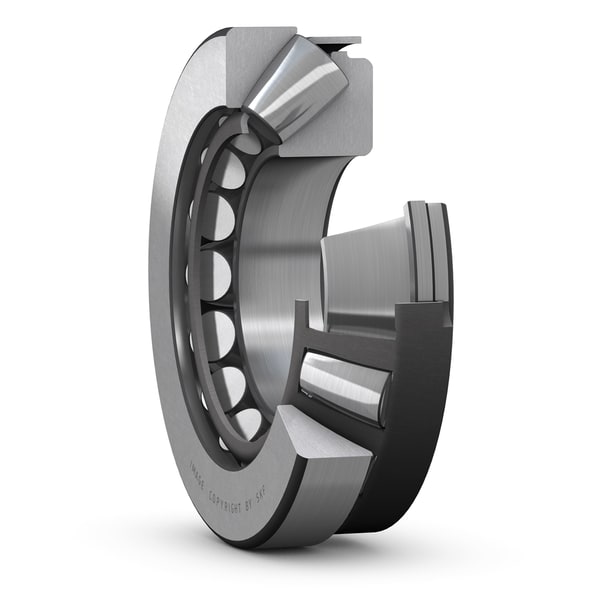

SKF 29352 E
Spherical roller thrust bearing with stamped steel cage
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
420.0 mm
Outside diameter
H
95.0 mm
Height
d1
382.0 mm
Outside diameter of shaft washer end side face
D1
324.0 mm
Shoulder diameter outer ring
B
61.0 mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage)
B1
86.6 mm
Height shaft washer + cage
C
46.0 mm
Height housing washer
s
148.0 mm
Distance from shaft washer end side face to pressure point
r1,2
5.0 mm
Chamfer dimension shaft washer
mass
46.1 kg
Product net weight
