SKF 29413 E

Spherical roller thrust bearings

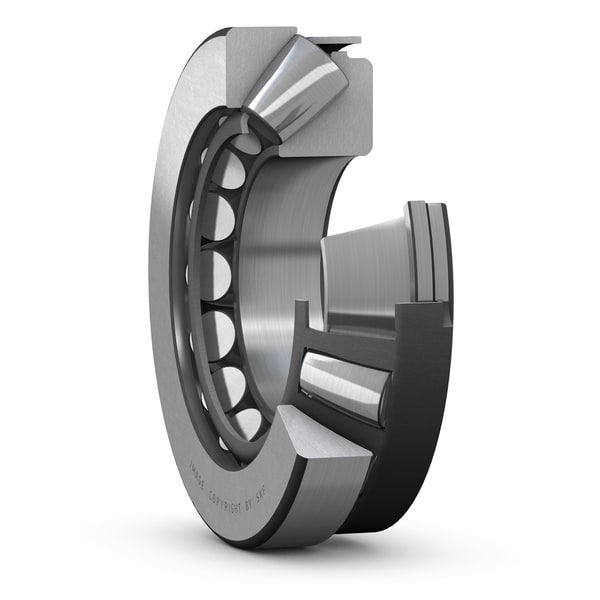

Spherical roller thrust bearing with stamped steel cage

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

29413 E

Spherical roller thrust bearings

Dimensions

d 65.0 mm Bore diameter

D 140.0 mm Outside diameter

H 45.0 mm Height

d₁ 120.0 mm Outside diameter of shaft washer end side face

D₁ 91.5 mm Shoulder diameter outer ring

B 29.5 mm Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage)

B₁ 39.8 mm Height shaft washer + cage

C 22.0 mm Height housing washer

s 42.0 mm Distance from shaft washer end side face to pressure point

r_1,2 2.0 mm Chamfer dimension shaft washer

mass 3.13 kg Product net weight

SKF 29413 E Spherical Roller Thrust Bearing Overview

The SKF 29413 E is part of the SKF spherical roller thrust bearings series and is described as a spherical roller thrust bearing with a stamped steel cage.

What is the 29413 E?

The 29413 E is an SKF spherical roller thrust bearing. The supplied product data identifies it within the bearing category path for SKF roller bearings and spherical roller thrust bearings.

29413 E Dimensions and Physical Data

Bore diameter (d): 65.0 mm
Outside diameter (D): 140.0 mm
Height (H): 45.0 mm
Outside diameter of shaft washer end side face (d1): 120.0 mm
Shoulder diameter, outer ring (D1): 91.5 mm
Width shaft washer (B): 29.5 mm
Height shaft washer plus cage (B1): 39.8 mm
Height housing washer (C): 22.0 mm
Distance to pressure point (s): 42.0 mm
Chamfer dimension (r1,2): 2.0 mm
Mass: 3.13 kg

What are the main dimensions of the bearing?

The 29413 E has a 65.0 mm bore, 140.0 mm outside diameter, and 45.0 mm overall height. Additional supplied dimensions include a shaft washer width of 29.5 mm and housing washer height of 22.0 mm.

Supplied Performance Figures for the 29413 E

Listed load figure: 455.0 kN
Listed speed figure: 4800.0 r/min
Cage design: stamped steel cage

What performance values are included in the product data?

The supplied data includes a value of 455.0 kN and a speed value of 4800.0 r/min. Because the data does not label the load value as a specific rating type, it is presented only as the listed load figure for this bearing.
